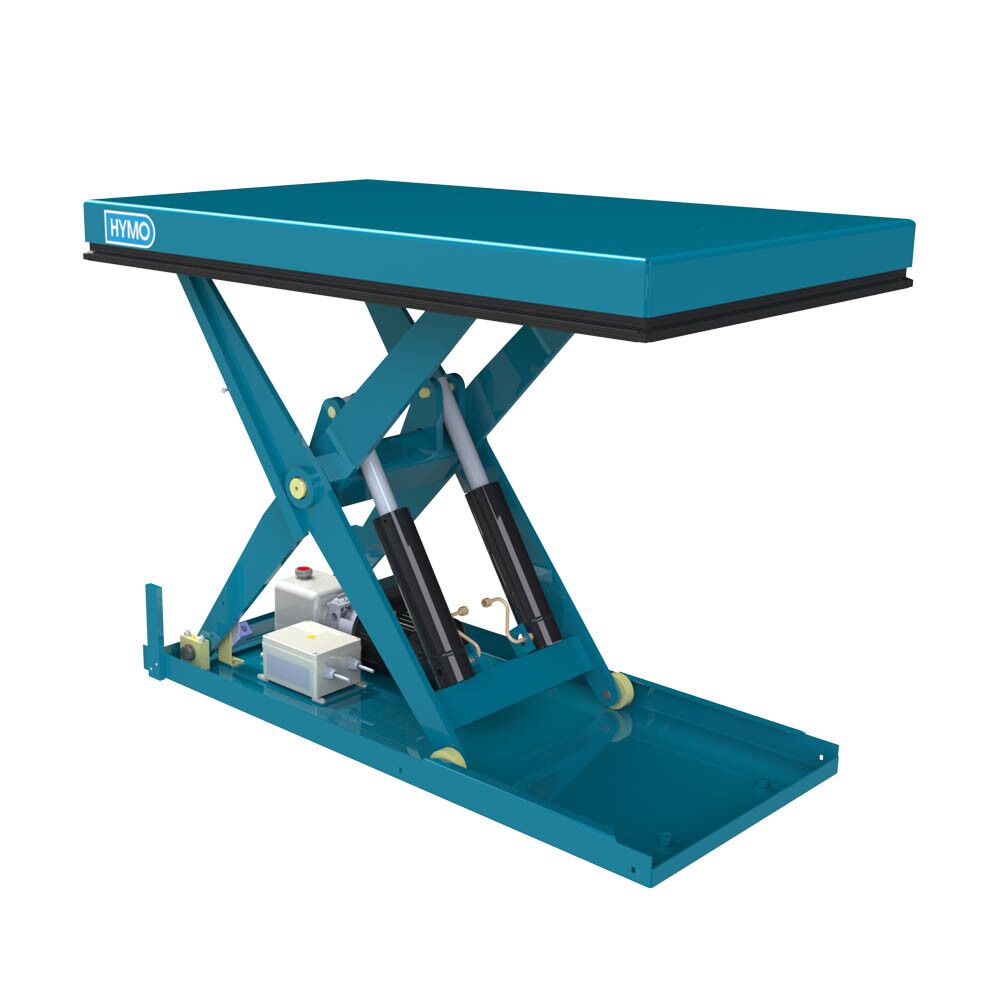

AX20-8/6T P

.

Product: General data

AX20-8/6T P

SKU: AX20-8/6T P Category:
product-86036569349 AX20-8/6T P AX20-8/6T P https://hymo.com/wp-content/uploads/2019/01/1_AX-15-1.jpg AX20-8/6T P 86036569349 marcolift
Capacity
Lift Stroke 800
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 2000
Lift stroke (mm) 800
Height (mm) 220
Platform length (mm) 1350
Platform Width (mm) 600
Lift time (s) 25
Net weight (kg) 215
Motor power (kW) 1,43
Supply voltage 3x400 AC
Frequency (Hz) 50
Rated current (A) 3,1
Control voltage 24 AC
Power pack location (m) INT
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 1335
Frame width (mm) 600
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width
AX5-8/6T P 500 800 200 1200 600
AX10-8/6 P 1000 800 200 1200 600
AX10-8/6-800T P 1000 800 200 1200 800
AX10-8/8-1000T P 1000 800 200 1200 1000
AX10-8/8T P 1000 800 200 1200 800
AX20-8/6-800T P 2000 800 220 1350 800
AX20-8/8T P 2000 800 220 1350 800
AX5-8/6 P 500 800 200 1200 600
AX5-8/6-800T P 500 800 200 1200 800
