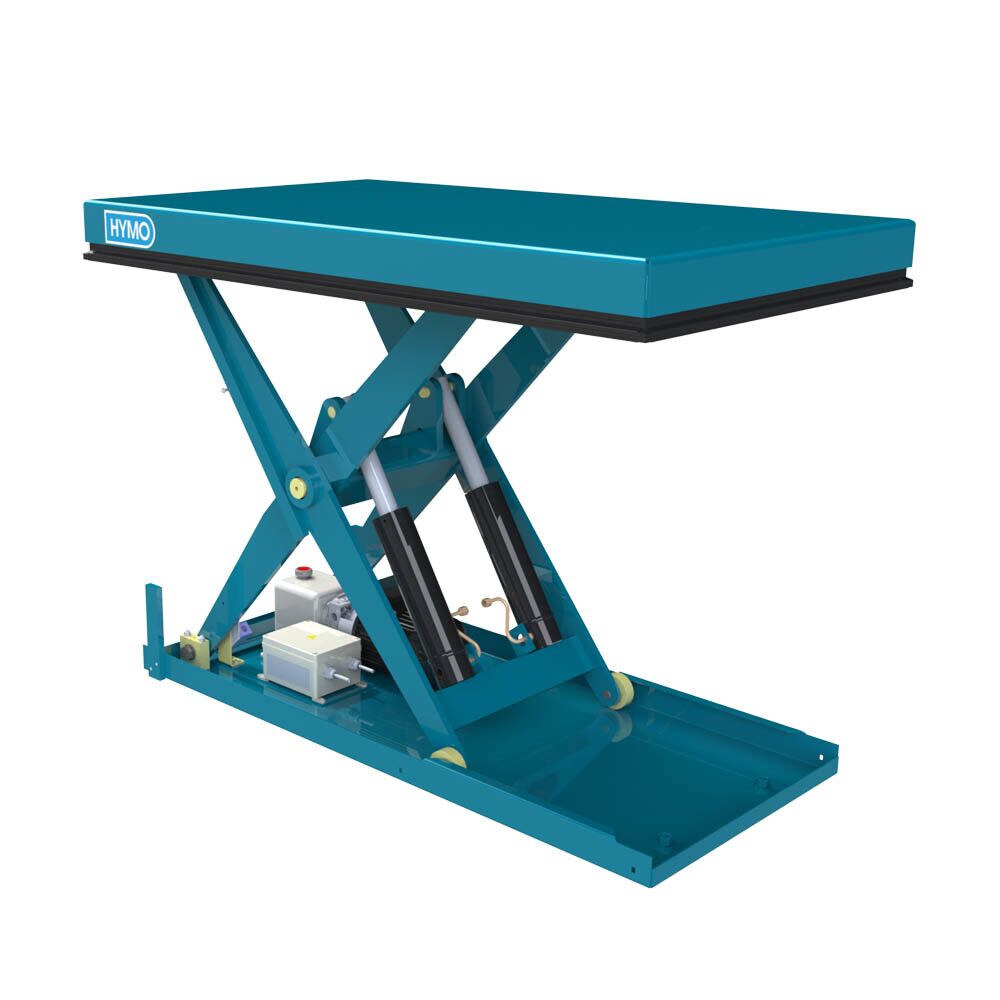

AX20-8/8T P

.

Product: General data

AX20-8/8T P

SKU: AX20-8/8T P Category:
product-86036569399 AX20-8/8T P AX20-8/8T P https://hymo.com/wp-content/uploads/2019/01/1_AX-16-5.jpg AX20-8/8T P 86036569399 marcolift
Capacity
Lift Stroke 800
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 2000
Lift stroke (mm) 800
Height (mm) 220
Platform length (mm) 1350
Platform Width (mm) 800
Lift time (s) 25
Net weight (kg) 215
Motor power (kW) 1,43
Supply voltage 3x400 AC
Frequency (Hz) 50
Rated current (A) 3,1
Control voltage 24 AC
Power pack location (m) INT
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 1335
Frame width (mm) 800
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
AX5-8/6T P 500 800 200 1200 600 1137686 AX5-8/6T P
AX10-8/6 P 1000 800 200 1200 600 1137676 AX10-8/6 P
AX10-8/6-800T P 1000 800 200 1200 800 1137679 AX10-8/6-800T P
AX10-8/8-1000T P 1000 800 200 1200 1000 1137681 AX10-8/8-1000T P
AX10-8/8T P 1000 800 200 1200 800 1137678 AX10-8/8T P
AX20-8/6-800T P 2000 800 220 1350 800 1137679 AX20-8/6-800T P
AX20-8/6T P 2000 800 220 1350 600 1137680 AX20-8/6T P
AX5-8/6 P 500 800 200 1200 600 1137683 AX5-8/6 P
AX5-8/6-800T P 500 800 200 1200 800 1137685 AX5-8/6-800T P
