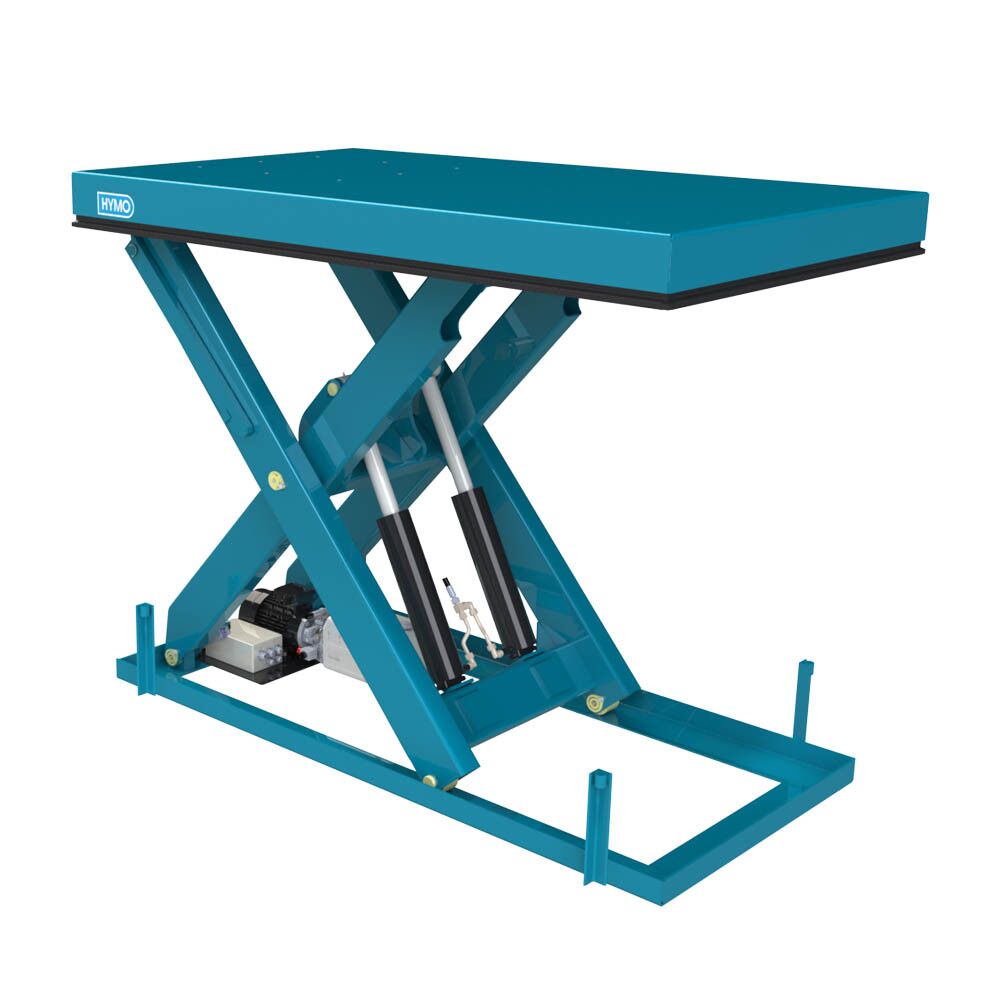

DX80-15/20

.

Product: General data

DX80-15/20

SKU: 860080 Category:
product-86036574699 DX80-15/20 DX80-15/20 https://hymo.com/wp-content/uploads/2019/01/8_DX-24-4.jpg 860080 86036574699 marcolift
Capacity
Lift Stroke 1500
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 8000
Lift stroke (mm) 1500
Height (mm) 600
Platform length (mm) 3000
Platform Width (mm) 2000
Lift time (s) 32
Net weight (kg)
Motor power (kW) 4,6
Supply voltage 400 AC 3~/N/PE
Frequency (Hz) 50
Rated current (A) 9
Control voltage 24 DC
Power pack location (m) INT
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 3000
Frame width (mm) 1650
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
DX30-20/12 3000 2000 300 3000 1200 DX30-20/12 860048
DX30-20/15 3000 2000 300 3000 1500 DX30-20/15 860049
DX40-13/12 4000 1300 300 2000 1200 DX40-13/12 860050
DX40-13/15 4000 1300 300 2000 1500 DX40-13/15 860051
DX40-16/12 4000 1600 400 2500 1200 DX40-16/12 860054
DX40-16/15 4000 1600 400 2500 1500 DX40-16/15 860055
DX40-20/12 4000 2000 400 3000 1200 DX40-20/12 860058
DX40-20/15 4000 2000 400 3000 1500 DX40-20/15 860059
DX50-13/12 5000 1300 400 2250 1200 DX50-13/12 860060
DX50-16/12 5000 1600 400 2500 1200 DX50-16/12 860064
DX50-16/15 5000 1600 400 2500 1500 DX50-16/15 860065
DX50-20/12 5000 2000 400 3000 1200 DX50-20/12 860068
DX50-20/15 5000 2000 400 3000 1500 DX50-20/15 860069
DX60-13/12 6000 1300 400 2250 1200 DX60-13/12 860070
DX60-16/12 6000 1600 400 2500 1200 DX60-16/12 860071
DX100-15/20 10000 1500 600 3000 2000 DX100-15/20 860090
