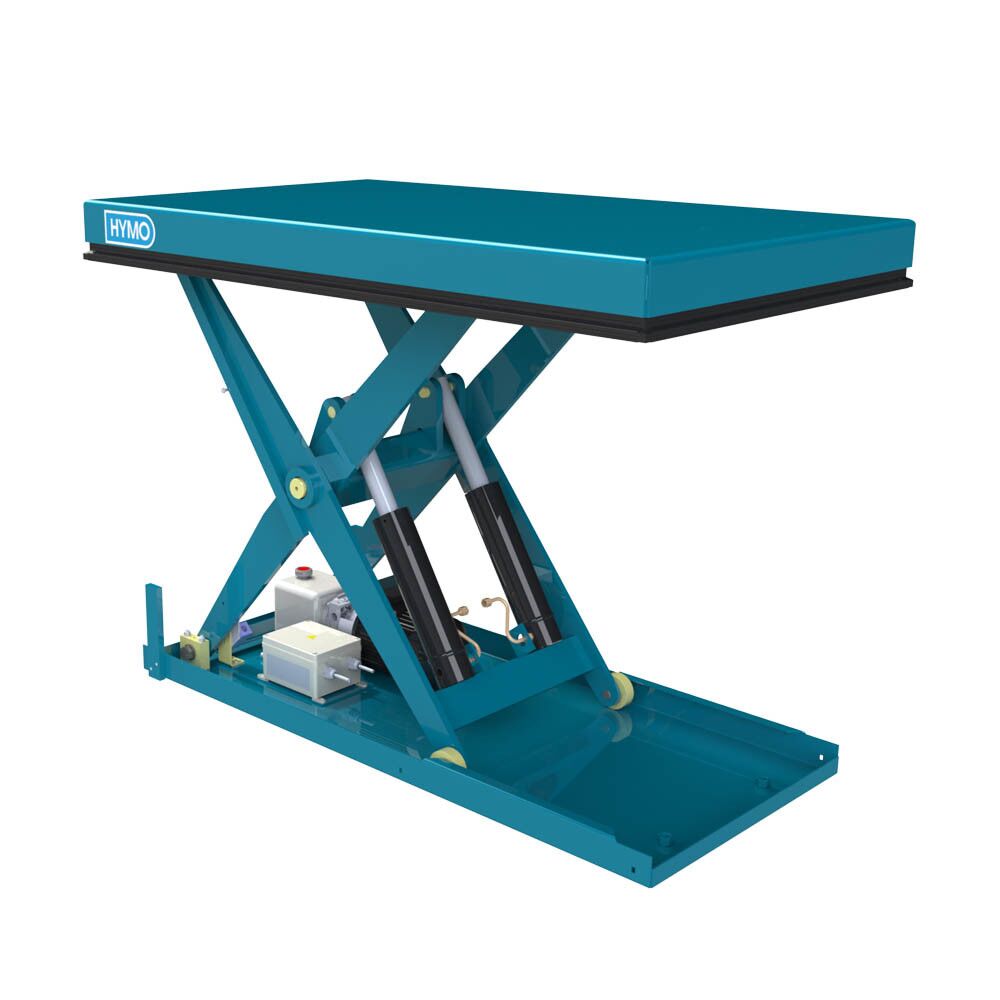

AX5-8/6 P

.

Product: General data

AX5-8/6 P

SKU: AX5-8/6 P Category:
product-86036569449 AX5-8/6 P AX5-8/6 P https://hymo.com/wp-content/uploads/2019/01/1_AX-17-1.jpg AX5-8/6 P 86036569449 marcolift
Capacity
Lift Stroke 800
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 500
Lift stroke (mm) 800
Height (mm) 200
Platform length (mm) 1200
Platform Width (mm) 600
Lift time (s) 19
Net weight (kg) 160
Motor power (kW) 0,55
Supply voltage 1x230 AC
Frequency (Hz) 50
Rated current (A) 3,6
Control voltage 24 AC
Power pack location (m) INT
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 1160
Frame width (mm) 600
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
AX5-8/6T P 500 800 200 1200 600 1137686 AX5-8/6T P
AX10-8/6 P 1000 800 200 1200 600 1137676 AX10-8/6 P
AX10-8/6-800T P 1000 800 200 1200 800 1137679 AX10-8/6-800T P
AX10-8/8-1000T P 1000 800 200 1200 1000 1137681 AX10-8/8-1000T P
AX10-8/8T P 1000 800 200 1200 800 1137678 AX10-8/8T P
AX20-8/6-800T P 2000 800 220 1350 800 1137679 AX20-8/6-800T P
AX20-8/6T P 2000 800 220 1350 600 1137680 AX20-8/6T P
AX20-8/8T P 2000 800 220 1350 800 1137682 AX20-8/8T P
AX5-8/6-800T P 500 800 200 1200 800 1137685 AX5-8/6-800T P
