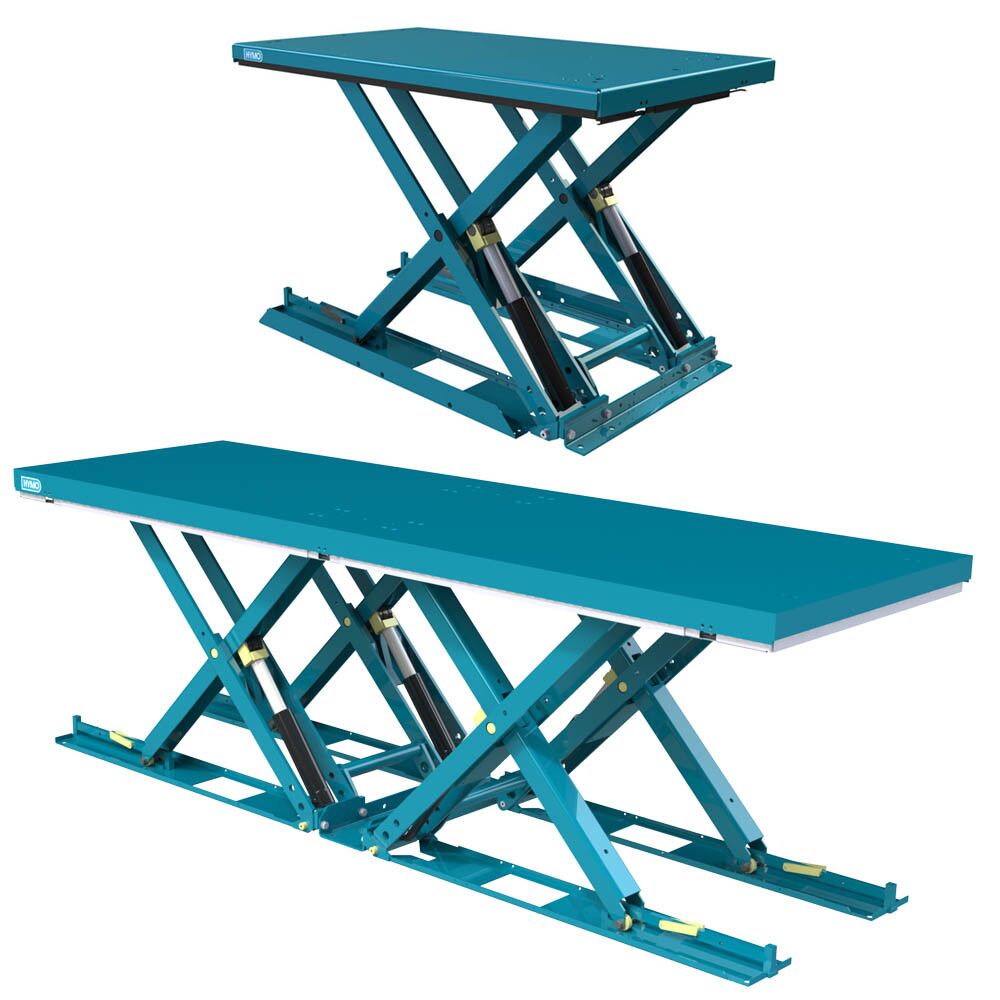

MXT30-8/8 P

.

Product: General data

MXT30-8/8 P

SKU: MXT30-8/8 P Category:
product-86036573699 MXT30-8/8 P MXT30-8/8 P https://hymo.com/wp-content/uploads/2019/01/6_MX_MXT-33-4.jpg MXT30-8/8 P 86036573699 marcolift
Capacity
Lift Stroke 800
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 3000
Lift stroke (mm) 800
Height (mm) 130
Platform length (mm) 2800
Platform Width (mm) 900
Lift time (s) 28
Net weight (kg) 675
Motor power (kW) 1,43
Supply voltage 400 AC 3~/N/PE
Frequency (Hz) 50
Rated current (A) 3,1
Control voltage 24 DC
Power pack location (m) EXT, 3M
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 2706
Frame width (mm) 800
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
MX10-8/10 P 1000 800 80 1350 1050 1137755 MX10-8/10 P
MX10-8/6 P 1000 800 80 1350 600 1137756 MX10-8/6 P
MX10-8/8 P 1000 800 80 1350 800 1137757 MX10-8/8 P
MX20-8/12 P 2000 800 100 1400 1200 1137761 MX20-8/12 P
MX20-8/8 P 2000 800 100 1400 800 1137762 MX20-8/8 P
MX5-8/10 P 500 800 80 1350 1050 1137765 MX5-8/10 P
MX5-8/6 P 500 800 80 1350 600 1137766 MX5-8/6 P
MX5-8/8 P 500 800 80 1350 800 1137767 MX5-8/8 P
MXT12-8/11 1200 800 90 2700 1100 1137769 MXT12-8/11
MXT12-8/6 1200 800 90 2700 650 1137770 MXT12-8/6
MXT12-8/8 1200 800 90 2700 850 1137771 MXT12-8/8
MXT15-8/11 1500 800 90 2700 1100 1137772 MXT15-8/11
MXT15-8/6 1500 800 90 2700 650 1137773 MXT15-8/6
MXT15-8/8 1500 800 90 2700 850 1137774 MXT15-8/8
MXT30-8/10 P 3000 800 130 2800 1100 1137775 MXT30-8/10 P
MXT30-8/12 P 3000 800 130 2800 1300 1137776 MXT30-8/12 P
