Product: General data

SKU: 860324 Category:

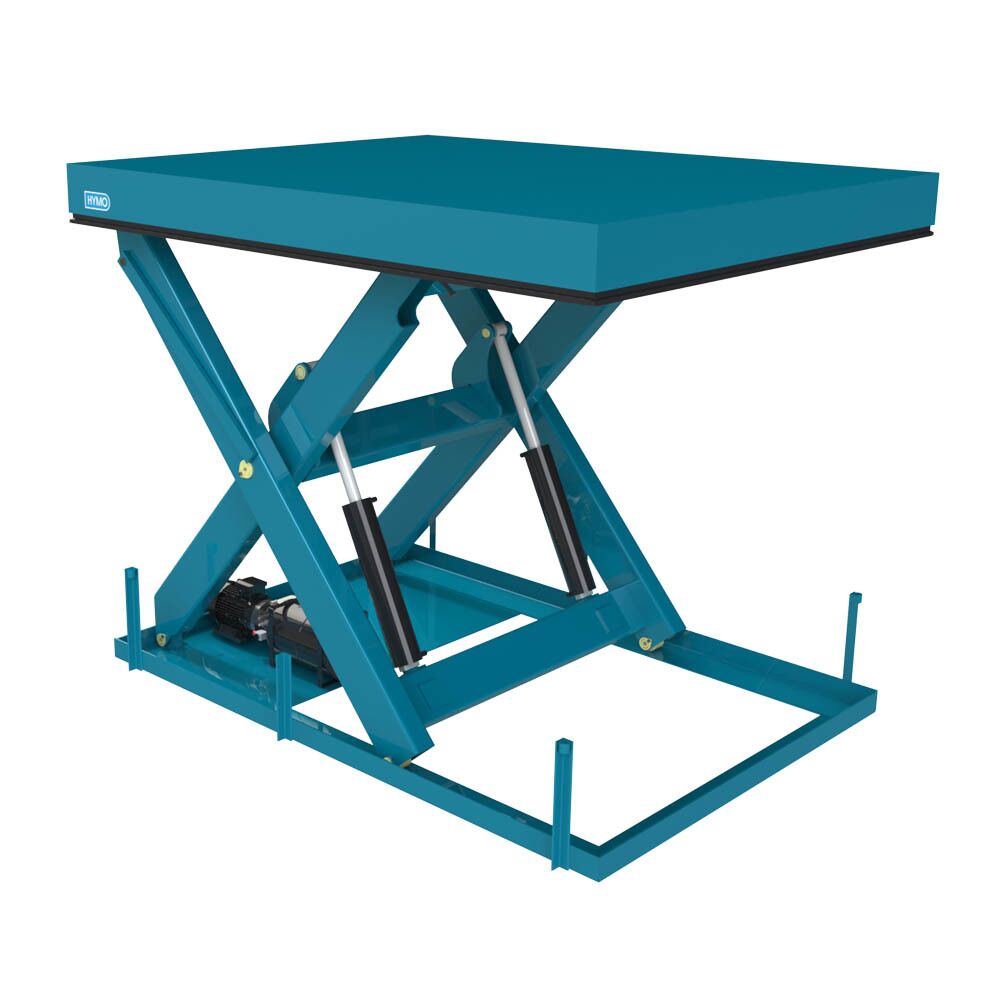

product-86036575299 LX20-16/20 LX20-16/20 https://hymo.com/wp-content/uploads/2019/01/9_LX-1-4.jpg 860324 86036575299 marcolift
Capacity
Lift Stroke 1600
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 2000
Lift stroke (mm) 1600
Height (mm) 305
Platform length (mm) 3000
Platform Width (mm) 2000
Lift time (s) 37
Net weight (kg)
Motor power (kW) 2,86
Supply voltage 400 AC 3~/N/PE
Frequency (Hz) 50
Rated current (A) 5,9
Control voltage 24 DC
Power pack location (m) INT
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 2500
Frame width (mm) 1760
Working temp (°C) -20 - +50
