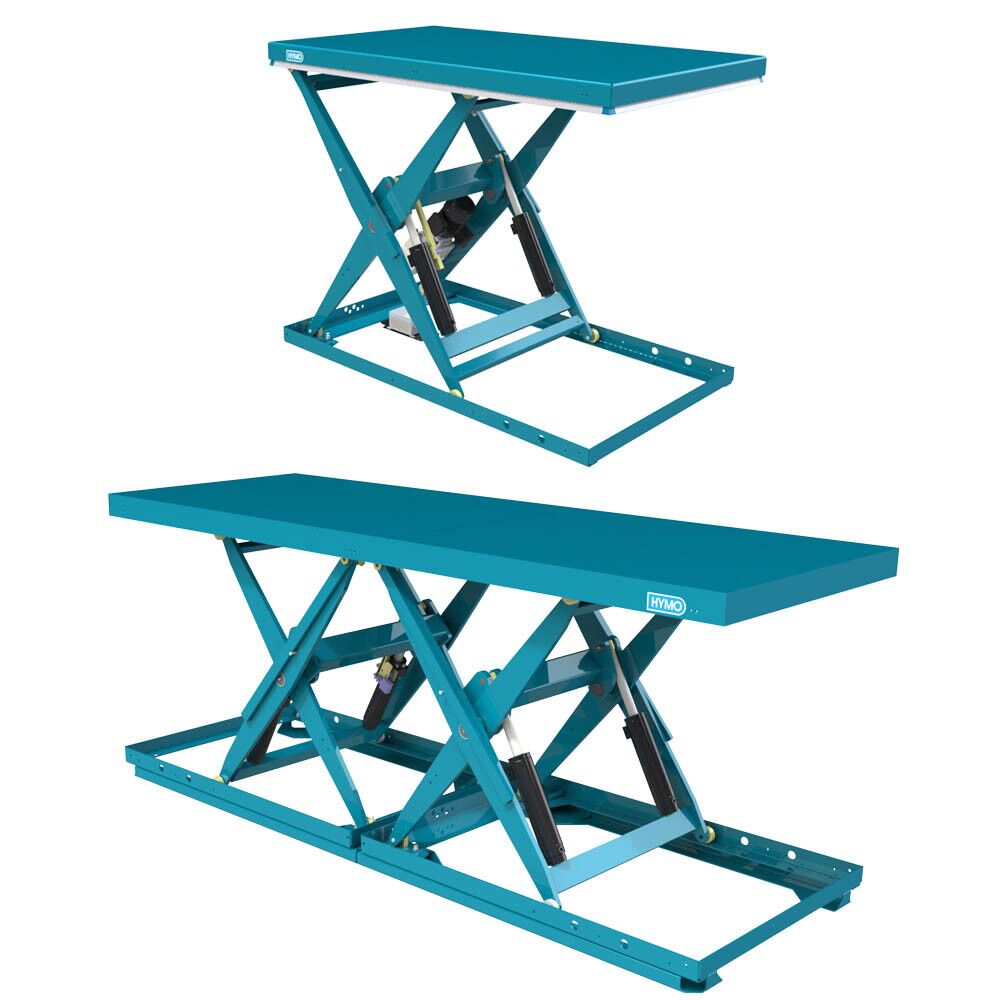

BXT60-13/18

.

Product: General data

BXT60-13/18

SKU: BXT60-13/18 Category:
product-86036572049 BXT60-13/18 BXT60-13/18 https://hymo.com/wp-content/uploads/2019/01/3_BX_BXT-100.jpg BXT60-13/18 86036572049 marcolift
Capacity
Lift Stroke 1300
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 5500
Lift stroke (mm) 1300
Height (mm) 340
Platform length (mm) 4000
Platform Width (mm) 1800
Lift time (s) 38
Net weight (kg) 1770
Motor power (kW) 3,9
Supply voltage 400 AC 3~/N/PE
Frequency (Hz) 50
Rated current (A) 8,3
Control voltage 24 DC
Power pack location (m) EXT, 3M
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 3910
Frame width (mm) 1800
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
BX10-11/6 1000 1100 240 1700 600 1137690 BX10-11/6
BX20-11/12 2000 1100 250 1700 1200 1137695 BX20-11/12
BX20-11/18 2000 1100 250 1700 1800 1137696 BX20-11/18
BX20-13/12 2000 1300 265 2000 1200 1137698 BX20-13/12
BX20-16/12 2000 1650 300 2500 1200 1137701 BX20-16/12
BX20-16/18 2000 1650 300 2500 1800 1137702 BX20-16/18
BX22-8/12 2000 800 205 1350 1200 1137704 BX22-8/12
BX22-8/18 2000 800 205 1350 1800 1137705 BX22-8/18
BX22-8/8 2000 800 205 1350 800 1137706 BX22-8/8
BX30-11/12 2900 1100 260 1700 1200 1137707 BX30-11/12
BX30-11/18 2900 1100 260 1700 1800 1137708 BX30-11/18
BX30-11/8 3000 1100 260 1700 800 1137709 BX30-11/8
BX30-13/8 3000 1300 280 2000 800 1137712 BX30-13/8
BX30-16/12 2000 1650 325 2500 1200 1137713 BX30-16/12
BX30-16/18 2600 1650 325 2500 1800 1137714 BX30-16/18
BX30-8/18 3000 800 230 1350 1800 1137717 BX30-8/18
BXT20-11/6 2000 1100 300 3400 600 1137719 BXT20-11/6
BXT40-11/12 4000 1100 320 3400 1200 1137723 BXT40-11/12
BXT40-11/18 4000 1100 320 3400 1800 1137724 BXT40-11/18
BXT40-13/12 4000 1300 325 4000 1200 1137726 BXT40-13/12
BXT40-13/18 4000 1300 325 4000 1800 1137727 BXT40-13/18
BXT40-13/8 4000 1300 325 4000 800 1137728 BXT40-13/8
BXT40-16/12 3600 1650 360 5000 1200 1137729 BXT40-16/12
BXT40-16/18 3600 1650 360 5000 1800 1137730 BXT40-16/18
BXT40-16/8 4000 1650 360 5000 800 1137731 BXT40-16/8
BXT60-11/12 5500 1100 320 3400 1200 1137734 BXT60-11/12
BXT60-11/18 5500 1100 320 3400 1800 1137735 BXT60-11/18
BXT60-13/12 5500 1300 340 4000 1200 1137737 BXT60-13/12
BXT60-16/18 5500 1650 390 5000 1800 1137741 BXT60-16/18
BXT60-16/8 5500 1650 390 5000 800 1137742 BXT60-16/8
