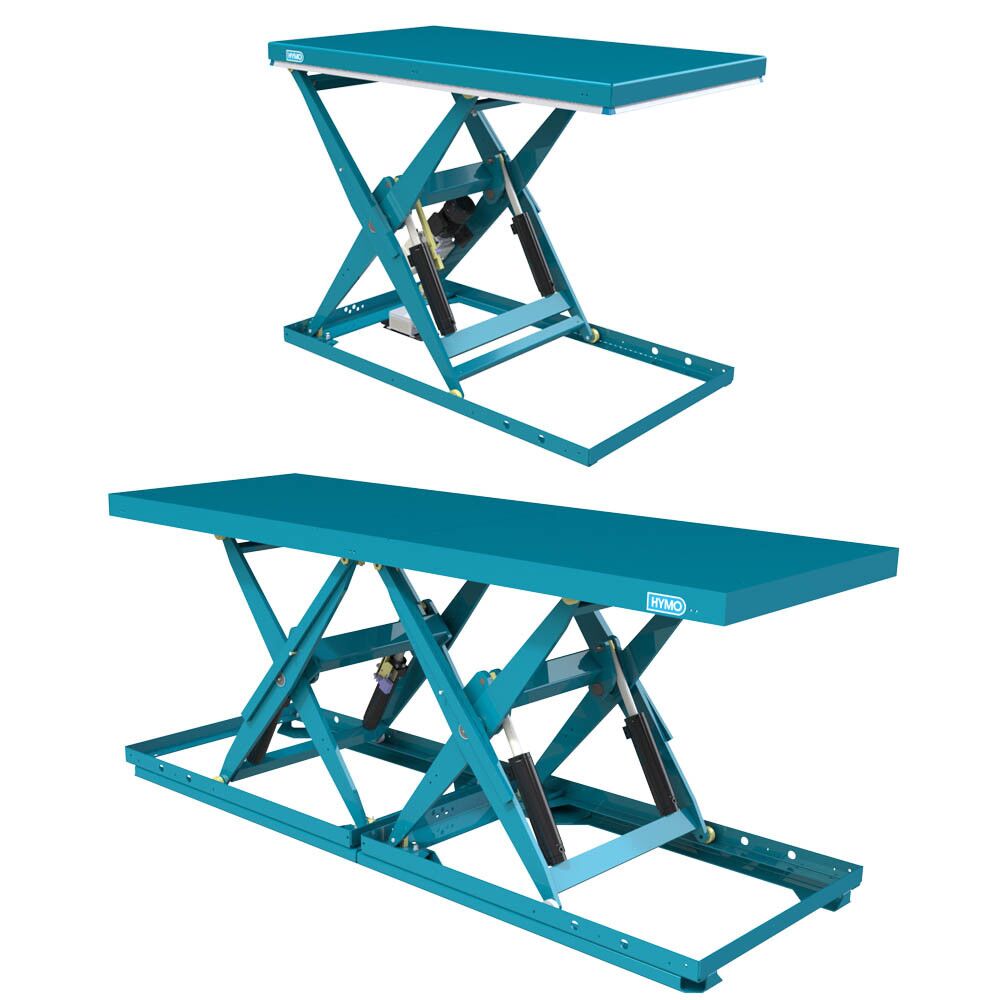

BXT20-16/12

.

Product: General data

BXT20-16/12

SKU: BXT20-16/12 Category:
product-86036571249 BXT20-16/12 BXT20-16/12 https://hymo.com/wp-content/uploads/2019/01/3_BX_BXT-84.jpg BXT20-16/12 86036571249 marcolift
Capacity
Lift Stroke 1650
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 2000
Lift stroke (mm) 1650
Height (mm) 320
Platform length (mm) 5000
Platform Width (mm) 1200
Lift time (s) 31
Net weight (kg) 1570
Motor power (kW) 3,9
Supply voltage 400 AC 3~/N/PE
Frequency (Hz) 50
Rated current (A) 8,3
Control voltage 24 DC
Power pack location (m) EXT, 3M
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 4875
Frame width (mm) 1200
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
BX10-11/6 1000 1100 240 1700 600 1137690 BX10-11/6
BX10-8/6 1000 800 205 1350 600 1137694 BX10-8/6
BX20-11/12 2000 1100 250 1700 1200 1137695 BX20-11/12
BX20-11/8 2000 1100 250 1700 800 1137697 BX20-11/8
BX20-13/12 2000 1300 265 2000 1200 1137698 BX20-13/12
BX20-16/12 2000 1650 300 2500 1200 1137701 BX20-16/12
BX20-16/18 2000 1650 300 2500 1800 1137702 BX20-16/18
BX20-16/8 2000 1650 300 2500 800 1137703 BX20-16/8
BX22-8/8 2000 800 205 1350 800 1137706 BX22-8/8
BX30-11/12 2900 1100 260 1700 1200 1137707 BX30-11/12
BX30-11/18 2900 1100 260 1700 1800 1137708 BX30-11/18
BX30-13/12 3000 1300 280 2000 1200 1137710 BX30-13/12
BX30-13/8 3000 1300 280 2000 800 1137712 BX30-13/8
BX30-16/12 2000 1650 325 2500 1200 1137713 BX30-16/12
BX30-8/12 3000 800 230 1350 1200 1137716 BX30-8/12
BX30-8/18 3000 800 230 1350 1800 1137717 BX30-8/18
BXT20-16/18 2000 1650 320 5000 1800 1137721 BXT20-16/18
BXT20-16/8 2000 1650 320 5000 800 1137722 BXT20-16/8
BXT40-11/18 4000 1100 320 3400 1800 1137724 BXT40-11/18
BXT40-11/8 4000 1100 320 3400 800 1137725 BXT40-11/8
BXT40-13/12 4000 1300 325 4000 1200 1137726 BXT40-13/12
BXT40-13/18 4000 1300 325 4000 1800 1137727 BXT40-13/18
BXT40-13/8 4000 1300 325 4000 800 1137728 BXT40-13/8
BXT40-16/18 3600 1650 360 5000 1800 1137730 BXT40-16/18
BXT60-11/12 5500 1100 320 3400 1200 1137734 BXT60-11/12
BXT60-11/8 5500 1100 320 3400 800 1137736 BXT60-11/8
BXT60-13/12 5500 1300 340 4000 1200 1137737 BXT60-13/12
BXT60-13/8 5500 1300 340 4000 800 1137739 BXT60-13/8
BXT60-16/18 5500 1650 390 5000 1800 1137741 BXT60-16/18
BXT60-16/8 5500 1650 390 5000 800 1137742 BXT60-16/8
