Product: General data

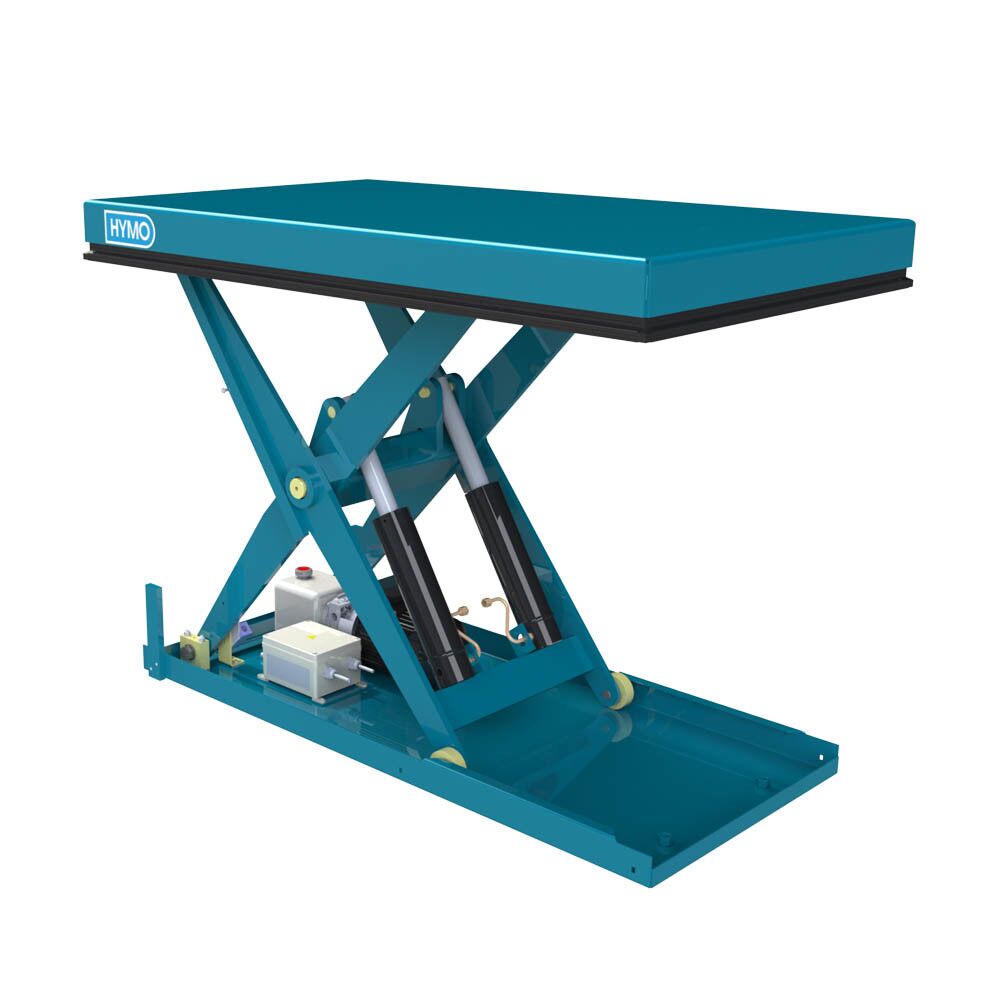

SKU: AX10-8/6 P Category:
product-86036569099 AX10-8/6 P AX10-8/6 P https://hymo.com/wp-content/uploads/2019/01/1_AX-10-5.jpg AX10-8/6 P 86036569099 marcolift
Capacity
Lift Stroke 800
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 1000
Lift stroke (mm) 800
Height (mm) 200
Platform length (mm) 1200
Platform Width (mm) 600
Lift time (s) 19
Net weight (kg) 160
Motor power (kW) 0,55
Supply voltage 1x230 AC
Frequency (Hz) 50
Rated current (A) 3,6
Control voltage 24 AC
Power pack location (m) INT
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 1160
Frame width (mm) 600
Working temp (°C) -20 - +50
