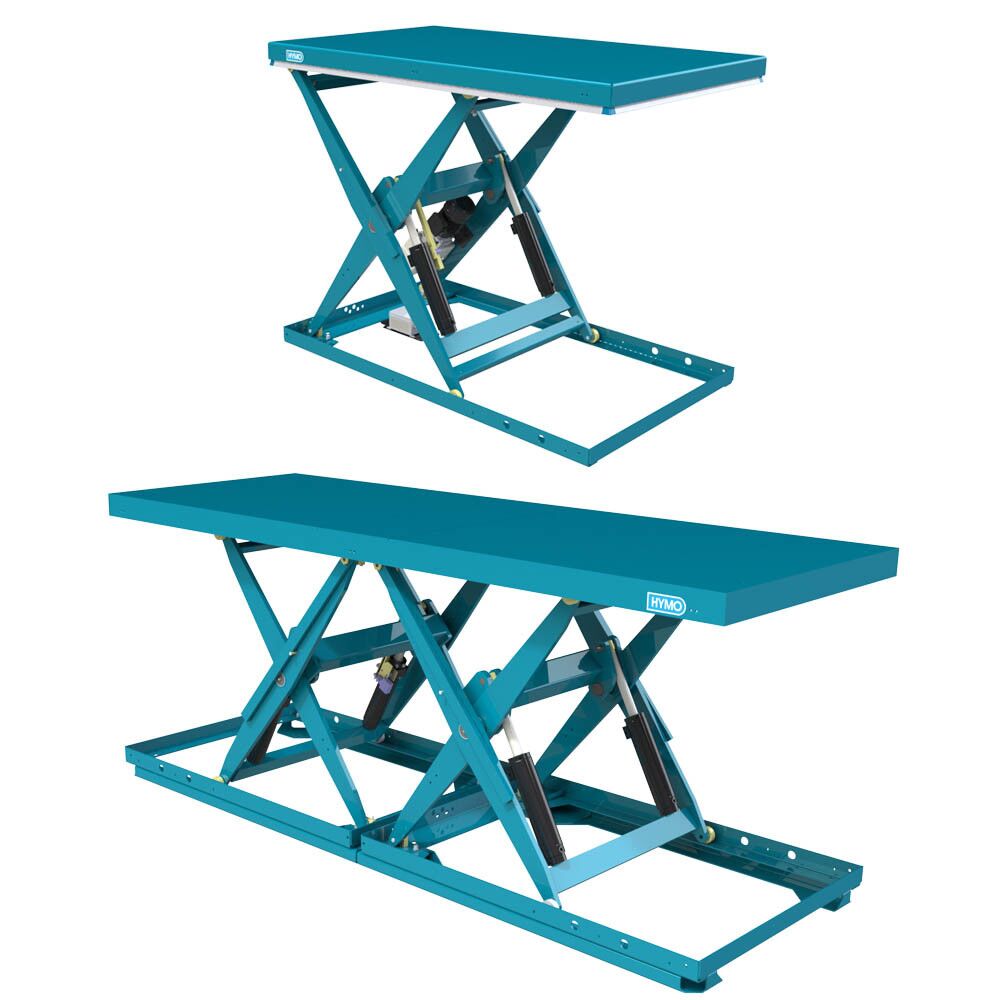

BX30-11/12

.

Product: General data

BX30-11/12

SKU: BX30-11/12 Category:
product-86036570599 BX30-11/12 BX30-11/12 https://hymo.com/wp-content/uploads/2019/01/3_BX_BXT-71-4.jpg BX30-11/12 86036570599 marcolift
Capacity
Lift Stroke 1100
Platform Length
Platform Width
5/ 5stars
Good
Rated 3.5/5 based on 11 customer reviews
Capacity (kg) 2900
Lift stroke (mm) 1100
Height (mm) 260
Platform length (mm) 1700
Platform Width (mm) 1200
Lift time (s) 38
Net weight (kg) 540
Motor power (kW) 1,43
Supply voltage 400 AC 3~/N/PE
Frequency (Hz) 50
Rated current (A) 3,1
Control voltage 24 DC
Power pack location (m) INT
Protection class IP55
Hydraulic oil ISO 32
Frame length (mm) 1655
Frame width (mm) 1180
Working temp (°C) -20 - +50

Articles: Tech Spec

Model Capacity Lift stroke Closed height Length Width ITEM NO. ITEM REF.
BX10-16/12 1000 1650 260 2500 1200 1137691 BX10-16/12
BX10-8/6 1000 800 205 1350 600 1137694 BX10-8/6
BX20-11/12 2000 1100 250 1700 1200 1137695 BX20-11/12
BX20-13/18 2000 1300 265 2000 1800 1137699 BX20-13/18
BX20-13/8 2000 1300 265 2000 800 1137700 BX20-13/8
BX20-16/18 2000 1650 300 2500 1800 1137702 BX20-16/18
BX22-8/12 2000 800 205 1350 1200 1137704 BX22-8/12
BX22-8/18 2000 800 205 1350 1800 1137705 BX22-8/18
BX22-8/8 2000 800 205 1350 800 1137706 BX22-8/8
BX30-11/18 2900 1100 260 1700 1800 1137708 BX30-11/18
BX30-11/8 3000 1100 260 1700 800 1137709 BX30-11/8
BX30-13/12 3000 1300 280 2000 1200 1137710 BX30-13/12
BX30-16/12 2000 1650 325 2500 1200 1137713 BX30-16/12
BX30-8/18 3000 800 230 1350 1800 1137717 BX30-8/18
BXT20-11/6 2000 1100 300 3400 600 1137719 BXT20-11/6
BXT20-16/12 2000 1650 320 5000 1200 1137720 BXT20-16/12
BXT20-16/8 2000 1650 320 5000 800 1137722 BXT20-16/8
BXT40-11/12 4000 1100 320 3400 1200 1137723 BXT40-11/12
BXT40-11/18 4000 1100 320 3400 1800 1137724 BXT40-11/18
BXT40-11/8 4000 1100 320 3400 800 1137725 BXT40-11/8
BXT40-13/12 4000 1300 325 4000 1200 1137726 BXT40-13/12
BXT40-13/18 4000 1300 325 4000 1800 1137727 BXT40-13/18
BXT40-13/8 4000 1300 325 4000 800 1137728 BXT40-13/8
BXT40-16/12 3600 1650 360 5000 1200 1137729 BXT40-16/12
BXT40-16/8 4000 1650 360 5000 800 1137731 BXT40-16/8
BXT60-11/18 5500 1100 320 3400 1800 1137735 BXT60-11/18
BXT60-11/8 5500 1100 320 3400 800 1137736 BXT60-11/8
BXT60-13/18 5500 1300 340 4000 1800 1137738 BXT60-13/18
BXT60-13/8 5500 1300 340 4000 800 1137739 BXT60-13/8
BXT60-16/12 5500 1650 390 5000 1200 1137740 BXT60-16/12
